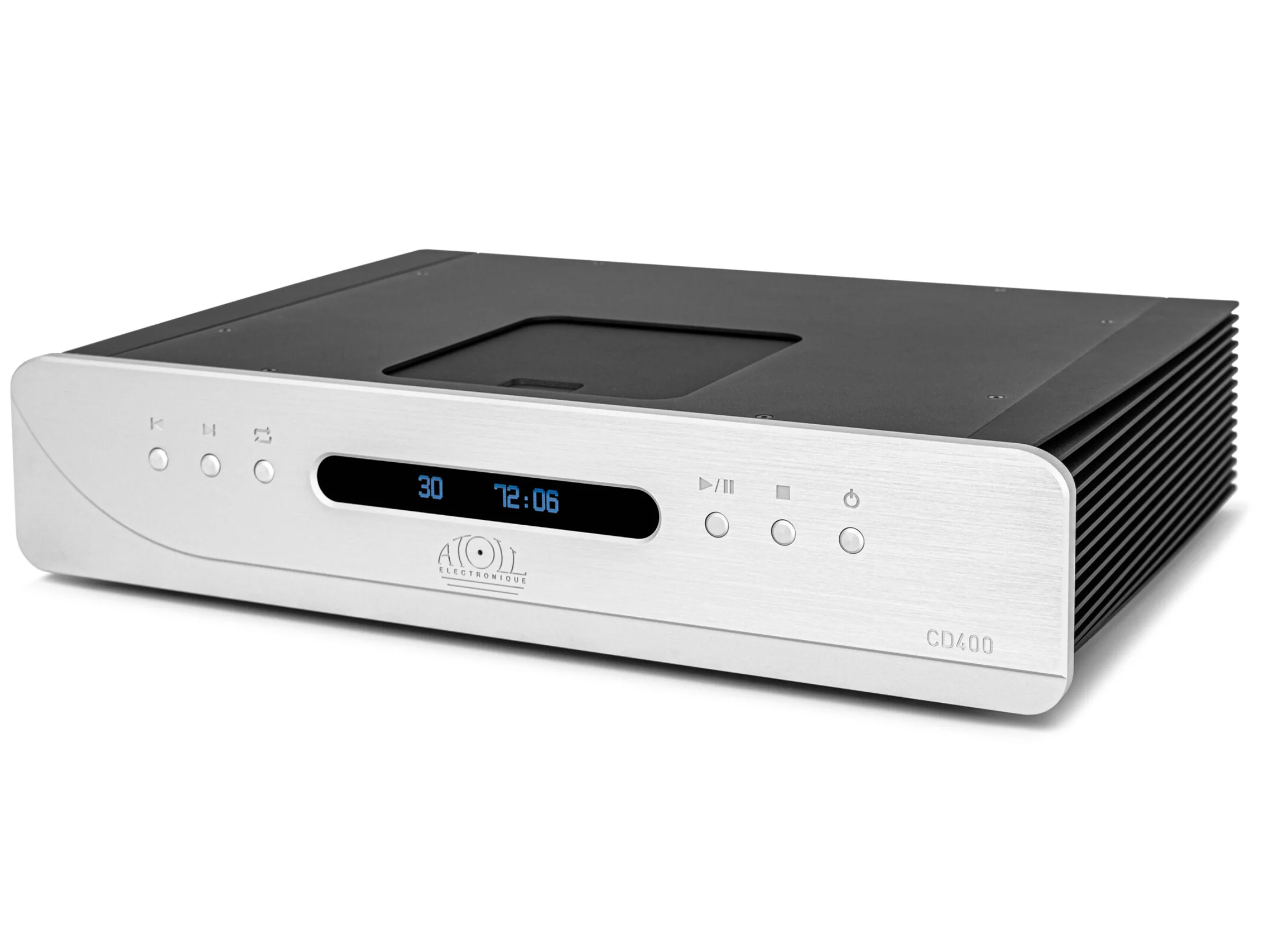

Atoll CD400 EVO CD Player
The CD400 EVO player is equipped with the latest Top Loading mechanics developed by ATOLL. It has perfectly matched high-performance power supplies and audio stages, offering an immersive stereo image and striking sound realism.
Thanks to its digital inputs using the internal conversion stages, this player is also a high-end converter.
Features
- 10 mm brushed, micro-blasted and anodized aluminium front panel, high-precision engraving.
- 2 mm steel chassis.
- Solid aluminium sides.
- New top-loading mechanics developed by ATOLL, suspension mounting, solid aluminum platter.
- Two 10 VA toroidal transformers each for the audio stages.
- 30 VA linear transformer (general power supply).
- 1.6 VA linear transformer (control logic).
- Ten regulated and independent power supplies.
- High-quality MKP link capacitors.
- Anti-vibration system.
- Complete dual mono structure:
– Two independent symmetrical stages for each channel.
– One PCM1792A converter per channel. - Bipolar transistor audio stages have a perfectly symmetrical structure, are polarized in class A, and are without feedback.
- Transistor and LED current sources ensure perfect stability and drastic rejection of distortions.
- Converter inputs: coaxial, optical and USB.
- High-contrast OLED display (on or off mode after 5 seconds of inactivity).
- CD text display.
- ATOLL global remote control supplied as standard.
Specifications
| Inputs: | |
| Optical Input: | 1 |
| Coaxial Input: | 1 |
| USB Input: | 1 |
| Outputs: | |
| Stereo XLR Output: | 1 |
| Stereo RCA Output: | 1 |
| AES/EBU Output: | 1 |
| Digital Optical Output: | 1 |
| Digital Coaxial Output: | 1 |
| Power Supply: | 30 VA + 2×10 VA (audio) + 1.6 VA |
| Total Capacitive: | 48 000 µF |
| Rising Time: | 1.3 µs |
| Output Impedance: | 5.6 Ω |
| Output Level: | 2.1 Vrms |
| Two Converters: | PCM1792A |
| Dynamic: | 132 dB |
| Signal-To-Noise Ratio: | 132 dB |
| Distortion Rate At 1 kHz: | 0.002% |
| Standby Power Consumption: | < 0.5 W |
| Operating Power Consumption: | 18 to 24 W |
| Dimensions: | 440×340×100 mm |
| Weight: | 12 Kg |
