ATC CDA2 Mk2 CD DAC Pre-Amplifier (Ex demonstration)

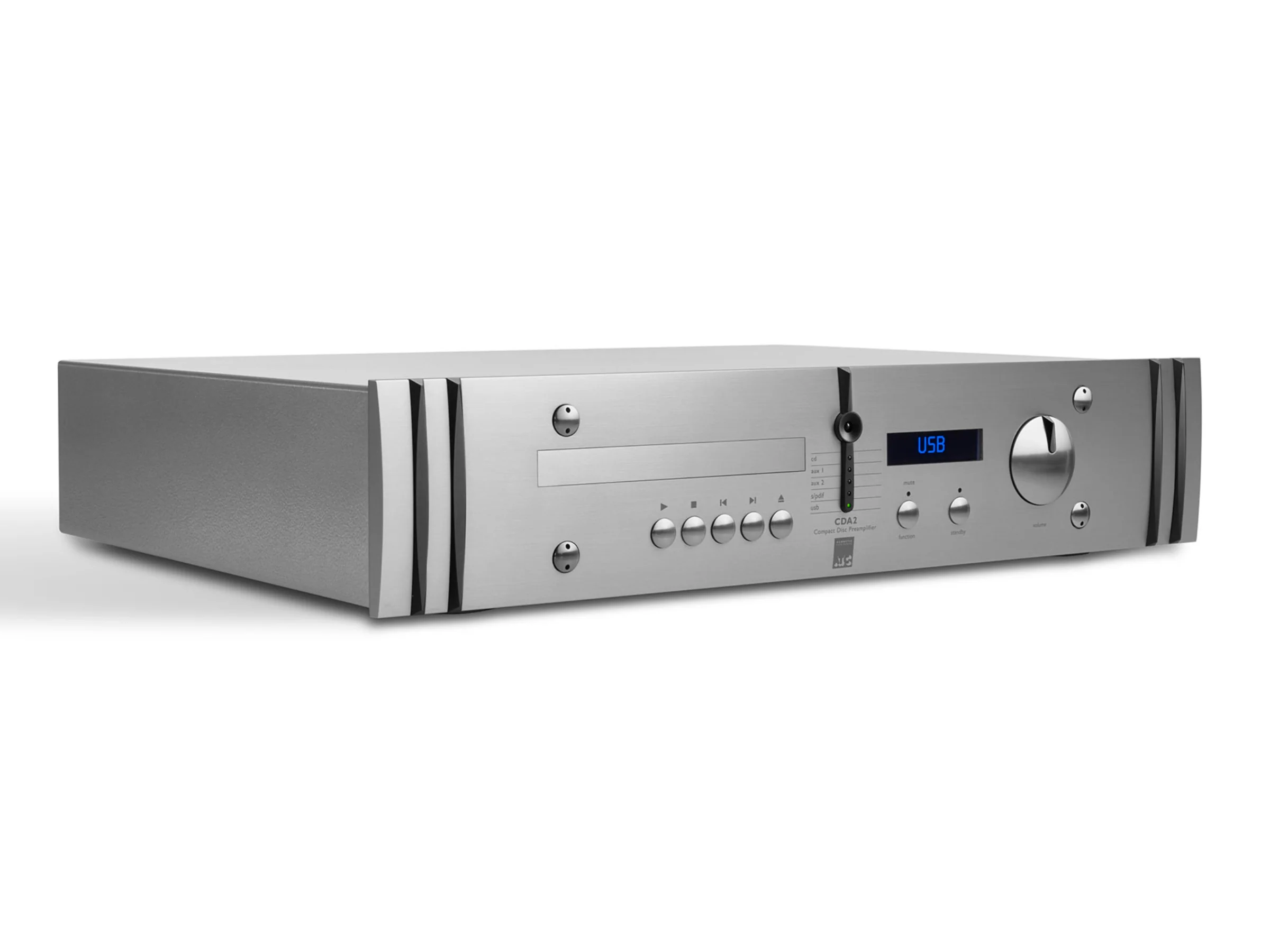

Combining very high performance and versatility, the CDA2 combines a CD player, pre-amplifier and high-resolution DAC within a compact and elegant chassis. Acting as the source or combined with a streamer and/or external phono stage, it can partner with active speakers to form an exceptional system with minimal ‘box-count’. Alternatively, the CDA2 can combine with a power amplifier such as the ATC P2 to drive passive loudspeakers with stunning results.
Features
- All-discrete class-A pre-amplifier with balanced and unbalanced outputs.
- Two analogue inputs via RCA/phono and one via 3.5mm mini-jack.
- High performance CD Player.
- Premium AKM 32-bit DAC.
- USB digital input supporting up to 384kHz PCM data and native DSD256.*
- Headphone amp featuring discrete output stage.
- Roon Tested Certification
- Handmade in England.
- 6 year warranty
Specifications
| THD: | < 0.0015% / -96dB (1kHz re. 2V out) |
| Frequency Response: | +/- 0.2dB (20Hz–20kHz) |
| PRE-AMPLIFIER | |
| Frequency Response (-3dB): | < 2 Hz – > 280 kHz |
| Distortion: | <0.0008% / 102dB (1kHz) |
| S+N/N Ratio: | >112dB (IEC ‘A’) |
| Crosstalk: | < -80dB (20Hz – 20kHz) |
| Input Sensitivity: | Aux inputs 600mV, 3.5mm inputs 400mV (re. 2V out) |
| Maximum Output Level – Balanced XLR: | 18.4V r.m.s. (600 ohms) |
| Maximum Output Level – Un-Balanced: | 9.2V r.m.s (600 ohms) |
| Analogue Pre-Amp Outputs: | 1 x balanced stereo pair via XLR, 1 x unbalanced stereo pair via RCA/Phono |
| Headphone Amp Outputs: | 1 x via 6.35mm jack |
| Analogue Inputs: | 2 x stereo pairs via RCA/Phono, 1 x via 3.5mm jack |
| DAC | |
| Digital Inputs: | 1 x TOSLINK, 1 x Coaxial, 1 x USB Audio |
| Distortion: | <0.001% at all supported sample rates |
| Supported Formats TOSLINK: | Up to 24/96 PCM |
| Supported Formats Coaxial: | Up to 24/192 PCM |
| Supported Formats USB: | Up to 32/384 PCM. Up to DSD256 via Windows/Linux. Up to DSD128 via Mac. |
| Dimensions: | 94 x 449 x 327mm / 3.7 x 17.7 x 12.9 inches (H x W x D inc. chassis connectors) |
| Weight: | 6.35kg / 13.97lbs |
